React Native Grid: Easy Responsive Layouts Step by Step

Llamdo
Llamdo
React Native Grid: Easy Responsive Layouts Step by Step
October 4, 2021
9
min read

We can create a grid system in React Native in a lot of ways. One of the best ways to do it is using FlatList, which is provided by React Native.

This post is about creating a responsive grid system using FlatList. To implement this, readers should have basic knowledge of JavaScript, React, and React Native. We’ll also be using the awesome script-less testing tool from Waldo to test our application.

The Setup

In this project, we will use Expo CLI. It is much easier to use than the React Native CLI. The Expo CLI is also recommended in the official document for beginners. We will install the Expo CLI globally using the below command:

npm install -g expo-cli

To create a new React Native project, we use the expo init command followed by the project name. I am calling the project “grid-flatlist.”

expo init grid-flatlist

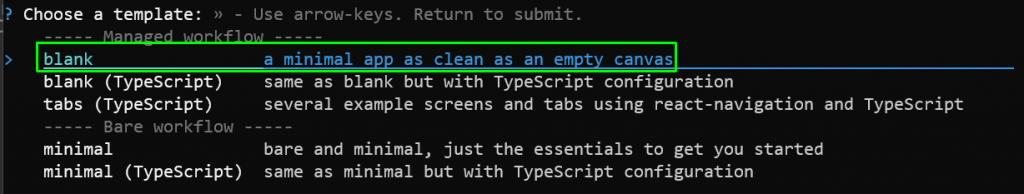

Next, we will be asked to choose a template. Here, we are choosing “blank” because we want a totally empty app. Press Enter to proceed here.

screenshot flatlist

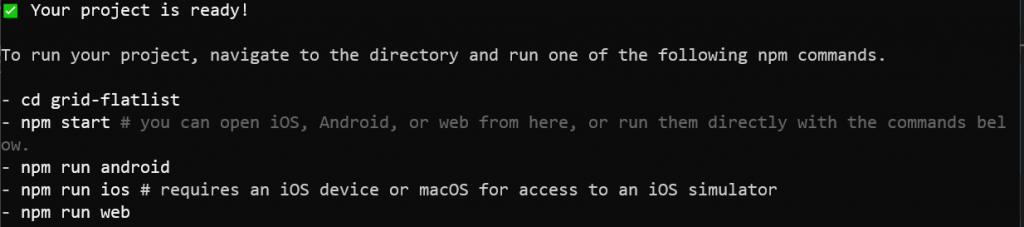

If we don’t get any errors, we will get the below screen. Here, we will also get the instructions to run our project.

screenshot flatlist

Starting Grid Project

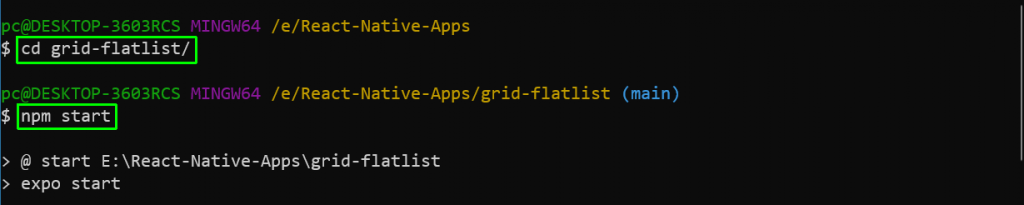

As per the instructions on the previous screen, we are first navigating to the grid-flatlist directory. After that we have to start the project with npm start.

screenshot flatlist

If we don’t have any errors, then the Metro Bundler will be launched on http://localhost:19002/. We get mainly four options to run our app in Metro Bundler. The first option is to run in an Android Emulator. The second one is to run in an iOS simulator. The third is to run the web version, which is actually a web app, and it can also be deployed like a web app.

QR code

I use the fourth way to run the app, which is to run it on a physical device. It is faster and gives the exact look of the app on a real device.

For that we need to scan the QR code, given by Expo (as seen in the above screenshot) through the Expo Go mobile app. The app is available in both the App Store and the Google Play store.

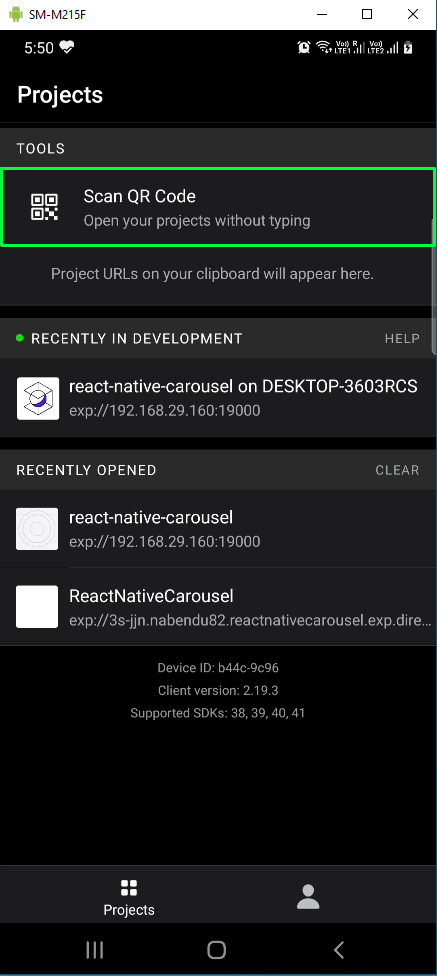

Once the app is installed, click on the Scan QR Code text. It will open the camera to scan the QR Code.

scan QR code

After we scan the QR Code, the application will open on our mobile device. It will show the default text of a React Native Expo app.

react native expo app

Starting FlatList

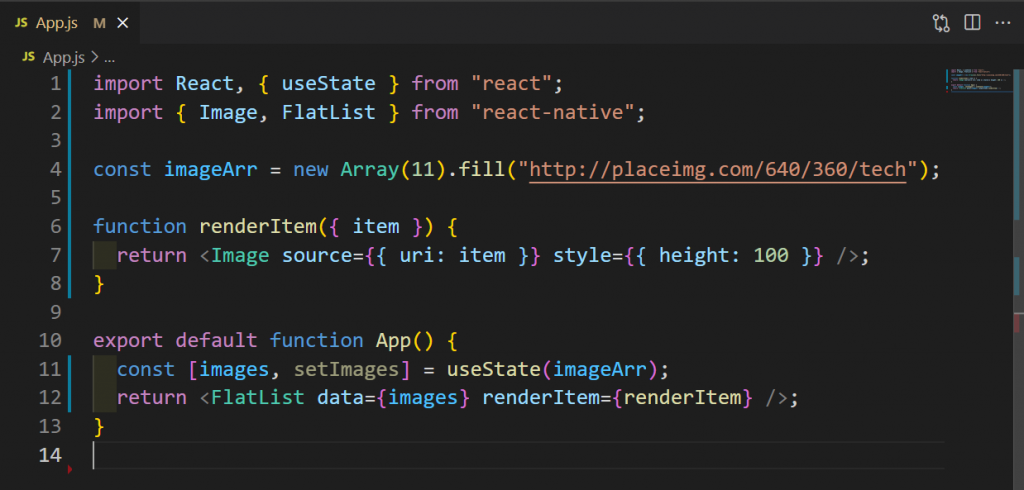

We will first start with adding a simple FlatList in our App.js file. Remove all the code that comes in this file and add the below code.

Here, we are first importing Image and FlatList from React Native. After that we are getting eleven images from http://placeimg.com and storing them in an array called imageArr. Then, inside the return statement, we are showing the FlatList. We need to provide two required attributes in a FlatList:

  • data: the array of items we iterate over
  • renderItem: the component we render for each item

In our app, we are using React useState to store the array imageArr. Inside the renderItem function, we are showing the item through the Image from React Native.

react native expo app usestate

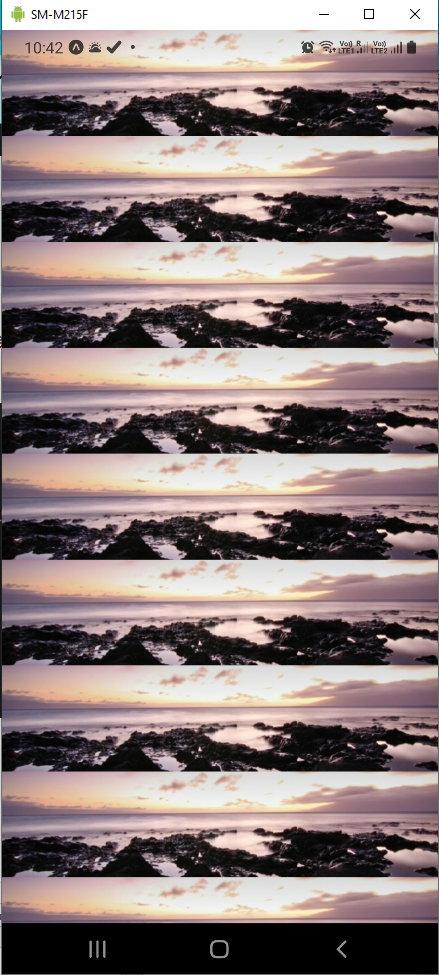

The result will be a list of stretched images with a height of 100.

stretched image

Introducing Columns

Now, we will introduce columns in our project to create a grid layout. Here, we add the numColumns attribute to FlatList and also a required key attribute. Note that the application will fail if we don’t give the key attribute in the latest React Native version. We have given both of them as 4 in our app.

Note that the application will fail if we don't give the key attribute in the latest React Native version.

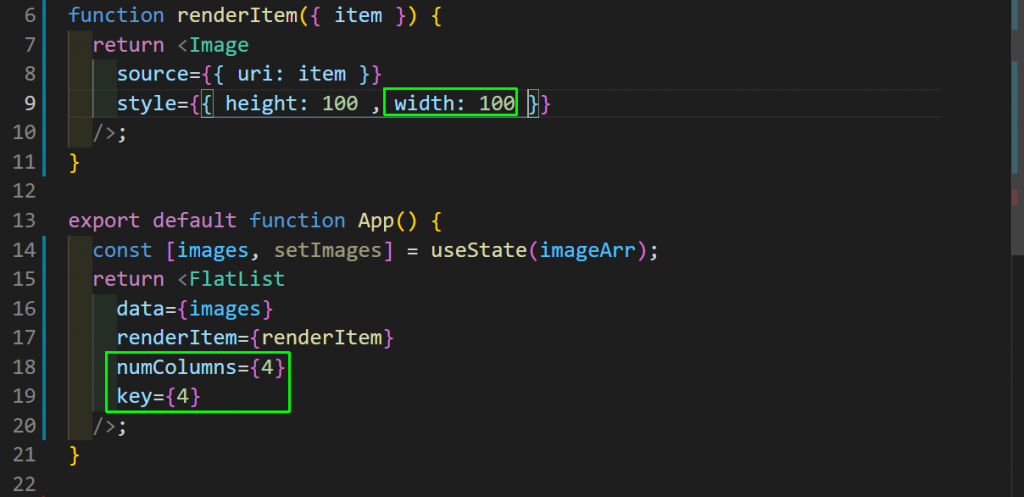

We also have to give a width to each image, or else we will get a white screen. So, in the Image tag, we are giving width in the style attribute. The updated code is shown in green in the below code screenshot.

image tag

Now, the images are shown in a grid, but since the width is fixed at 100, the last column images are not fitting correctly.

image grid

Fixing Size With Dimension API

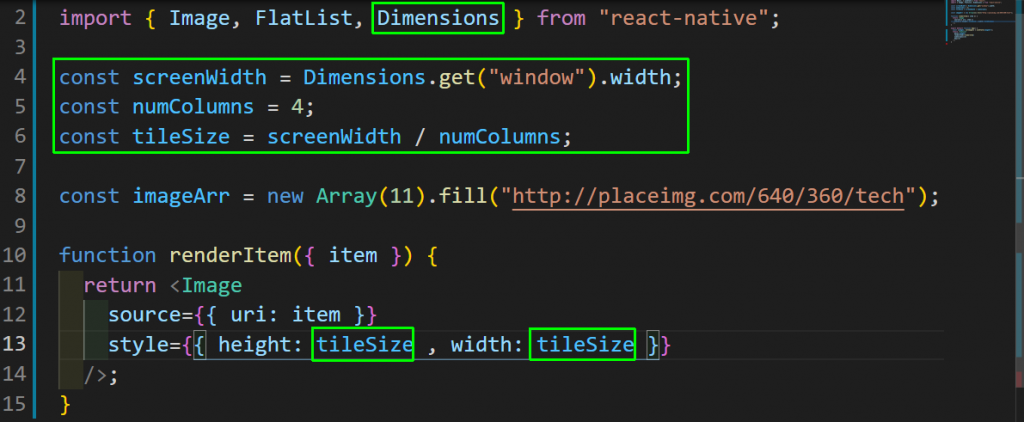

We can fix the last column problem using the dimension API, provided by React Native. With the dimension API, we can get width and height depending on the device. In our application, we are getting the width of the screen. After that, we can get the size of each image tile by dividing it by the number of columns.

We are now using the tileSize variable inside our Image tag for height and width.

tile size

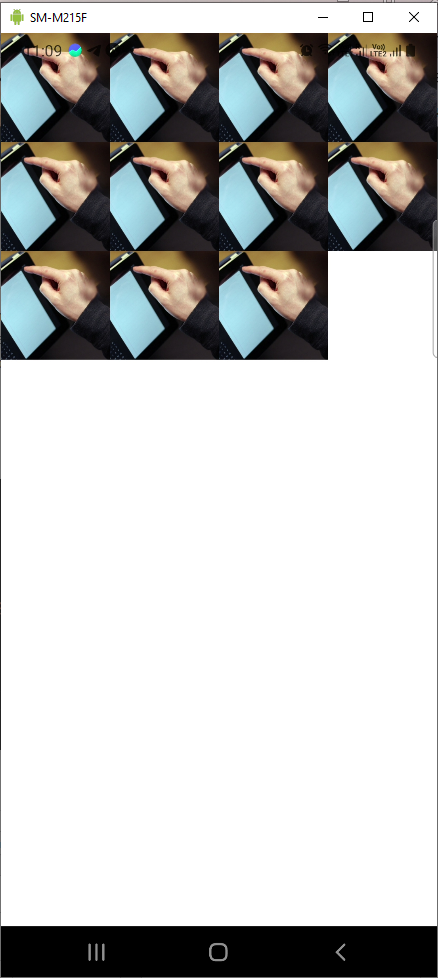

Now, our images will be shown properly and the last column issue is resolved.

column tile

Styling the App

Our app is not looking good, and the grid-based photo gallery is showing at the top, so it is overlapping with the navigation bar and notches in most devices. First, we need some additional elements from React Native. So, we will update our import statement to include those.

import { Image, FlatList, Dimensions, View, SafeAreaView, StyleSheet } from "react-native";

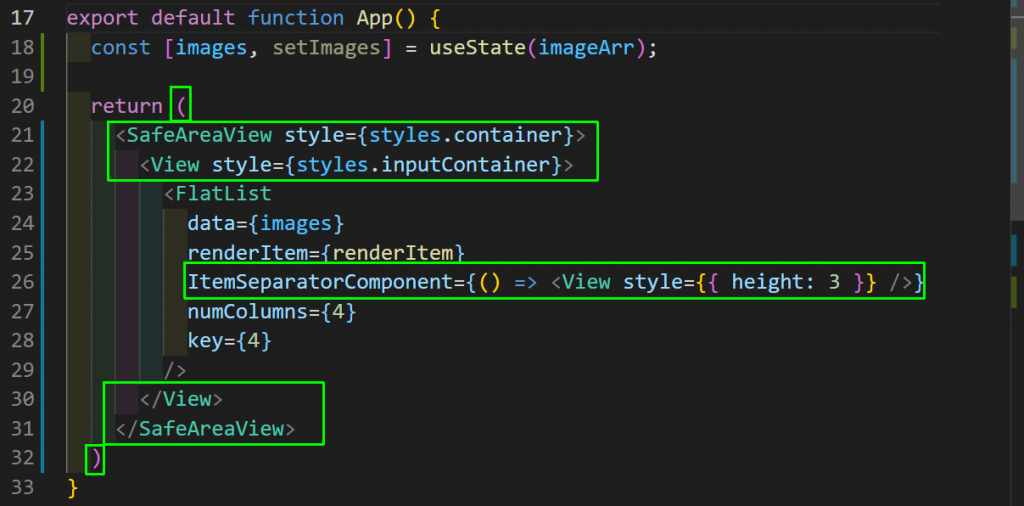

Next, we will wrap our FlatList with a SafeAreaView and View. We will write the styles for them next. Inside the FlatList, we have also added the attribute ItemSeparatorComponent. This is calling an inline function, which adds a height of 3 after each row.

safeareaview

Lastly, we will add the styles in the app. Here, the container class is a flex, with everything centered. Also, notice that the inputContainer class has a width set to the screen width, which we have calculated earlier with the dimension API.

container

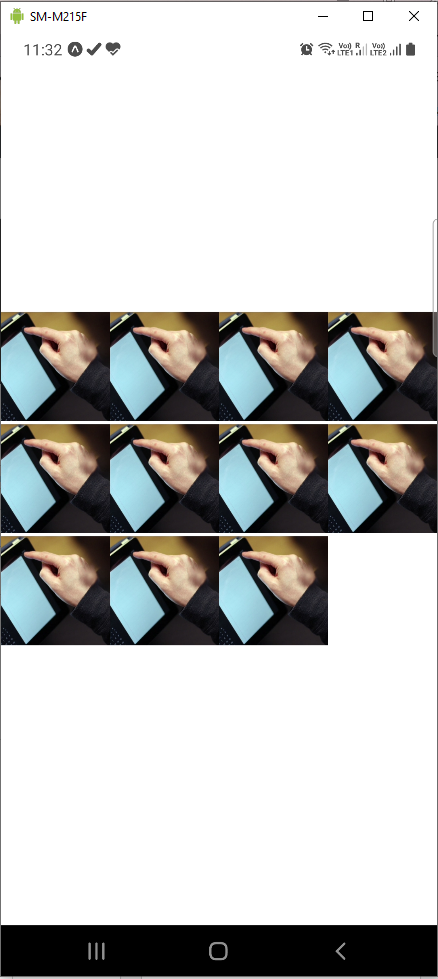

Now, our app is complete and showing perfectly.

screenshot of app

Creating the APK

The APK file is required for us to upload our app to iOS or Android app stores. It will be also used for the no-code testing in the next part. We’ll create an APK file for the Google Play store using Expo. The official docs are the best place for reference.

First, open your terminal and run the below command:

expo build:android

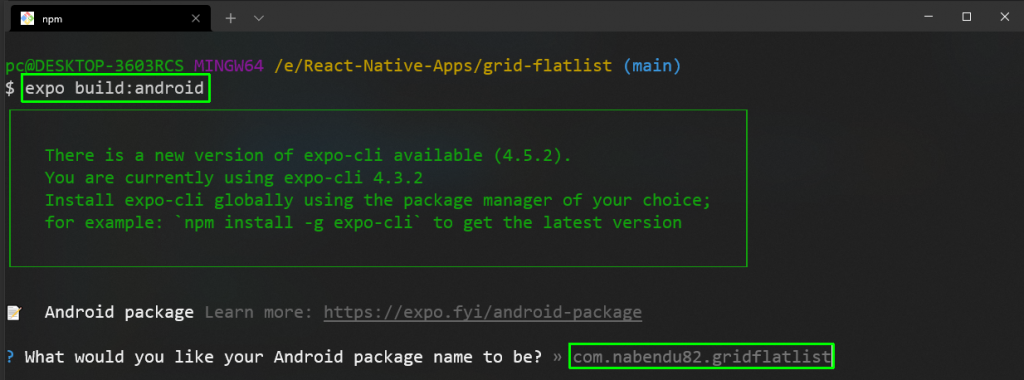

On running the command, we will be asked to give the Android package a name. The default name is a combination of your user name followed by the project name. It is advisable to keep it as default and press Enter.

enter

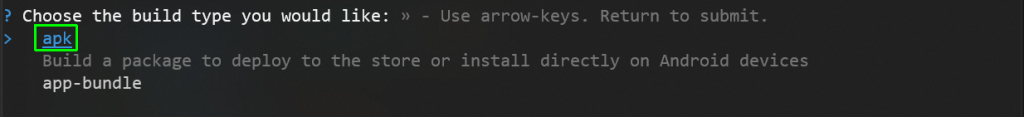

Next, leave the build type as the default option of APK and press Enter.

apk

In the next screen also, keep the default option as “Generate new keystore.” Press Enter.

keystore

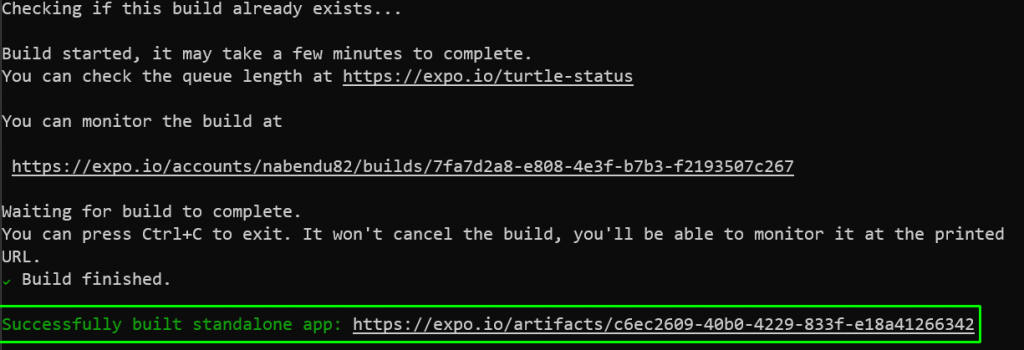

The APK building process will start, and it generally takes 10 to 15 minutes. When it is done successfully, it will give us a link. Open the link in a browser, and download the APK file.

APK file

Waldo No-Code Testing

For testing, we’ll be using the awesome Waldo no-code testing tool. We will require the APK file created in the previous step for this.

We need to first create a free Waldo account. This must be done using a business email address, as personal mail cannot be used.

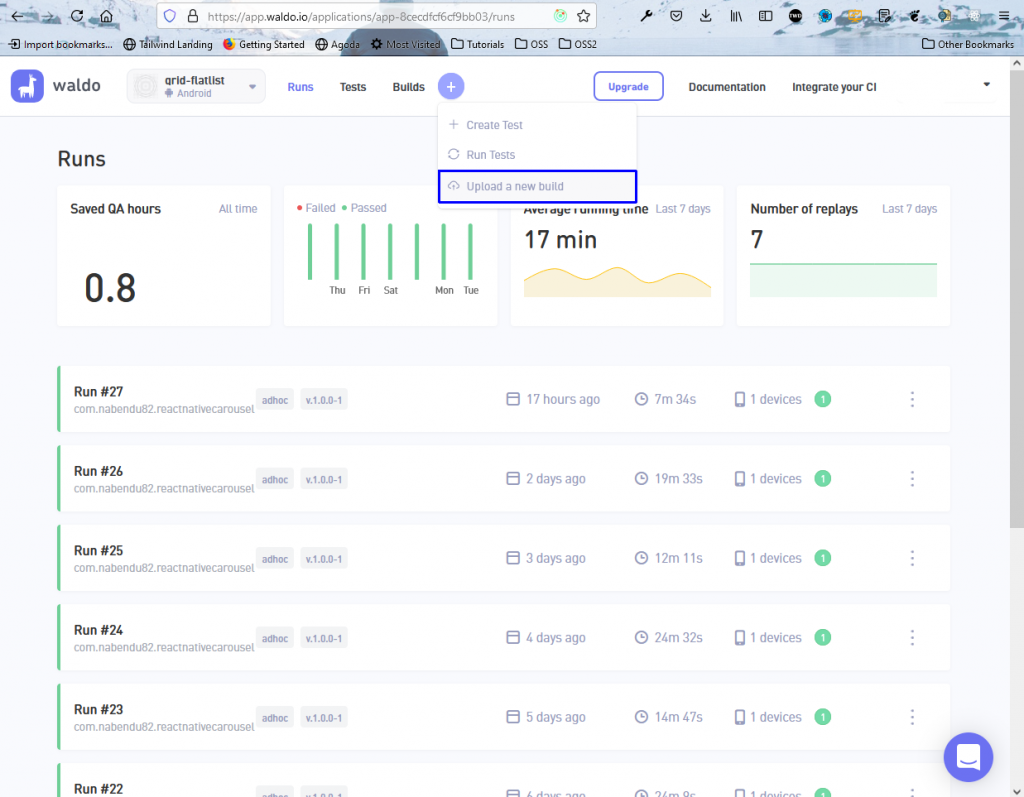

Next, we need to upload the APK file. Returning users who have already tested an app will get a different dashboard. They need to click the + icon, which will open a drop-down menu. Then click on Upload a new build.

Waldo testing

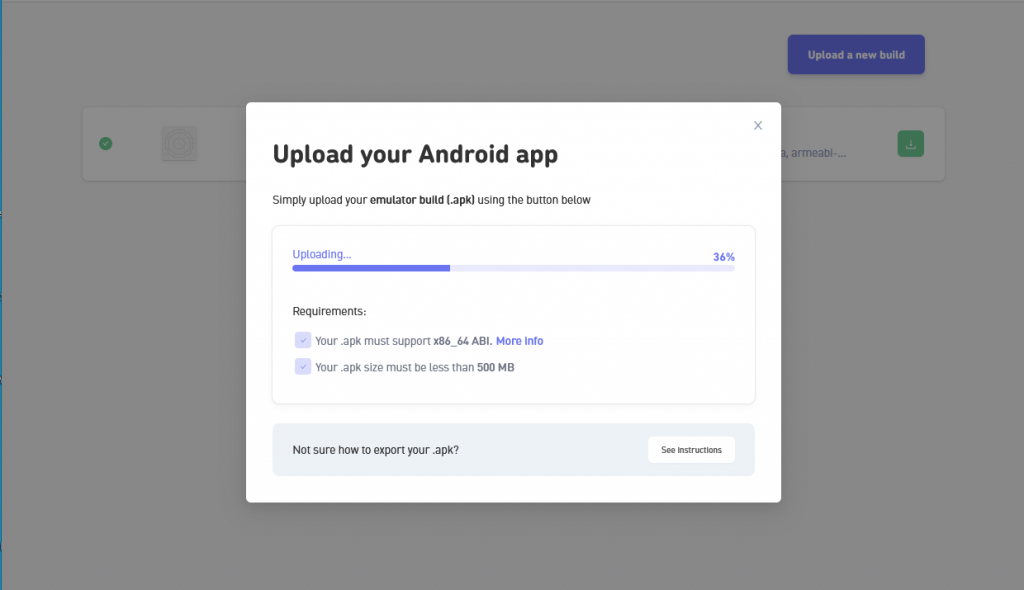

A pop-up will be shown, and we need to select the APK file in it.

waldo testing Android

After that, the upload will be done, as well as the verification of the app.

Waldo test

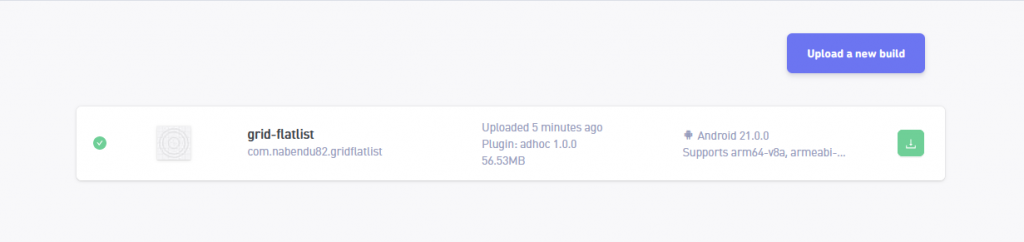

We will see all of our builds on the next screen. Click on the latest build here.

Waldo testing build

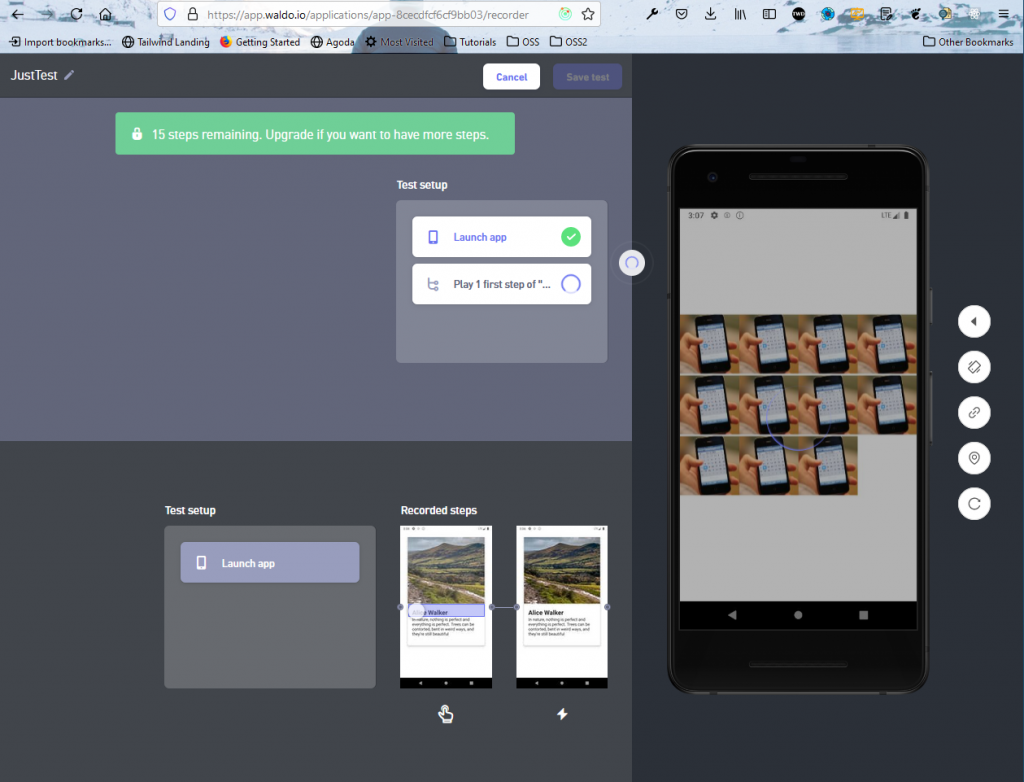

We need to perform various interactions on the next screen. Perform all the interactions, which you will do on a real device for better testing results.

Waldo testing results

After that, click on the Save test button on the above screen, and our test will be run.

Waldo test runs

Wrapping Up

In this post, we’ve learned to implement a grid in a React Native application. We implemented the grid quickly using the inbuilt FlatList component in React Native. We have also learned to create an APK easily using Expo, and we have also tested our app using the no-code Waldo tool.

Our app was also tested without writing any complicated unit tests or integration tests, which we achieved using Waldo.

By using an easy-to-use FlatList component, we were able to effortlessly implement a modern responsive grid in our project. Our app was also tested without writing any complicated unit tests or integration tests, which we achieved using Waldo. See how you can do the same by giving Waldo a try today.

This post was written by Nabendu Biswas. Nabendu has been working in the software industry for the past 15 years, starting as a C++ developer, then moving on to databases. For the past six years he’s been working as a web-developer working in the JavaScript ecosystem, and developing web-apps in ReactJS, NodeJS, GraphQL. He loves to blog about what he learns and what he’s up to.
